Application：Suitable for welding corrosion-resistant stainless steel structures operating below 300℃, such as 06Cr19Ni9, 06Cr19Ni11Ti and similar grades. Characteristics：A rutile-coated Cr18Ni9 stainless steel electrode. Usable with both AC and DC and suitable for all-position welding. It delivers excellent welding performance with stable arc, low spatter, easy slag removal and smooth weld appearance. The deposited metal features good resistance to intergranular corrosion. Welding Positions：PA, PB, PD, PF Precautions： 1. Bake the electrodes at 320–350℃ for 1 hour before use, and use immediately after baking. 2. Thoroughly remove rust, oil, moisture and other contaminants from the workpiece before welding. 3. DC power supply is recommended. When using AC, penetration is shallower; do not apply excessive current to avoid coating overheating and cracking. 4. Minimize heat input and keep electrode weaving within a narrow range. 5. Maintain preheat and interpass temperature below 150℃.
1. Deposited Metal, % by Mass
Item
C
Cr
Ni
Mo
Mn
Si
P
S
Cu
Standard
≤0.08
18.0-21.0
9.0-11.0
≤0.75
0.5-2.5
≤1
≤0.04
≤0.03
≤0.75
Typical
0.06
19.86
9.35
0.09
0.96
0.78
0.028
0.010
0.08
2. Deposited Metal Mechanical Properties
Item
Tensile Strength (Rm/MPa)
Elongation (A/%)
Standard
550
≥30
Typical
600
40
3. Welding Current (Recommended)
Welding Current (Recommended)：(AC、DC⁺)
Electrode Diameter(mm)
2
2.5
3.2
4
5
Electrode Length(mm)
300
300
350
400
400
Current(A)
25-50
50-80
80-110
110-160
160-200
E308L
Application：Suitable for welding ultra-low carbon 00Cr18Ni9 stainless steel structures. It can also be used for corrosion-resistant stainless steel components such as 0Cr19Ni11Ti working below 300℃, and is mainly applied in the manufacturing of synthetic fiber, chemical fertilizer, petroleum and other equipment. Characteristics：This is an ultra-low carbon Cr18Ni9 stainless steel electrode with rutile coating. It is compatible with both AC and DC power sources and suitable for all-position welding. It features excellent welding performance, stable arc, low spatter, easy slag removal and beautiful weld formation. The deposited metal possesses good intergranular corrosion resistance. Welding Positions：PA, PB, PD, PF Precautions： 1. Bake the electrodes at 320–350℃ for 1 hour before use, and apply them immediately after baking. 2. Thoroughly remove rust, oil stains, moisture and other impurities from the weldment before welding. 3. DC power supply is recommended. When using AC welding, the penetration is shallow; do not use excessive current to avoid redness and cracking of the coating. 4. Minimize heat input and avoid excessive weaving of the electrode. 5. Keep the preheating and interpass temperature below 150℃.
1. Deposited Metal, % by Mass
Item
C
Cr
Ni
Mo
Mn
Si
P
S
Cu
Standard
≤0.04
18.0-21.0
9.0-12.0
≤0.75
0.5-2.5
≤1
≤0.04
≤0.03
≤0.75
Typical
0.029
19.60
9.60
0.08
0.94
0.73
0.028
0.010
0.10
2. Deposited Metal Mechanical Properties
Item
Tensile Strength (Rm/MPa)
Elongation (A/%)
Standard
510
≥30
Typical
578
41
3. Welding Current (Recommended)
Welding Current (Recommended)：(AC、DC⁺)
Electrode Diameter(mm)
2
2.5
3.2
4
5
Electrode Length(mm)
300
300
350
400
400
Current(A)
25-50
50-80
80-110
110-160
160-200

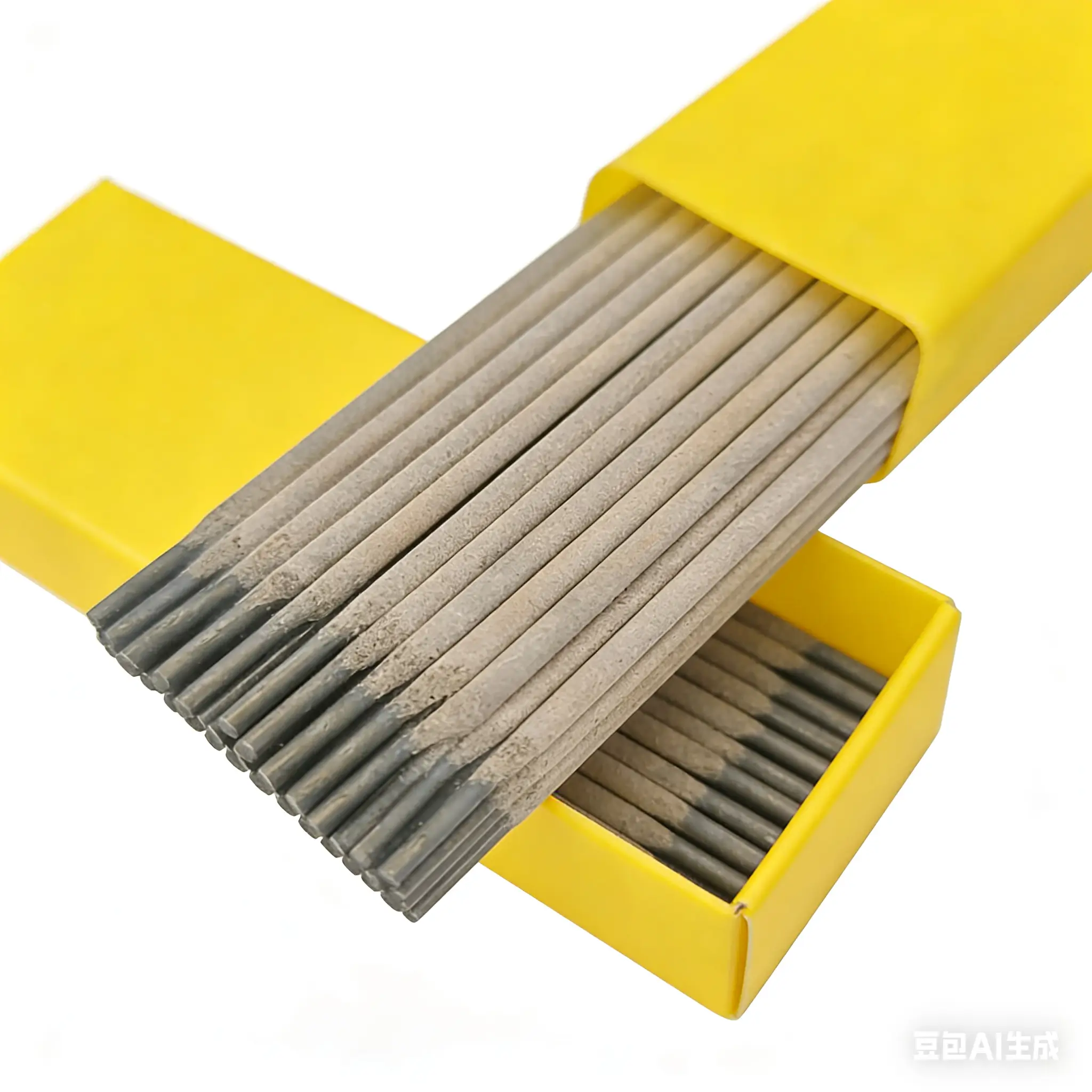

E309
Application：Suitable for welding stainless steels of the same type, stainless steel linings, dissimilar steels (such as Cr19Ni10 and low carbon steel), as well as high-chromium steel and high-manganese steel. Characteristics：It is a rutile-coated Cr23Ni13 stainless steel electrode. Compatible with both AC and DC power sources and applicable for all-position welding. It features excellent welding performance. The deposited metal has good crack resistance and oxidation resistance. Welding Positions：PA, PB, PD, PF Precautions： 1. Bake the electrodes at 320–350℃ for 1 hour before use, and use them immediately after baking. 2. Thoroughly remove rust, oil, moisture and other contaminants from the workpiece before welding. 3. DC power supply is recommended. AC welding results in shallow penetration; do not use excessive current to avoid overheating and cracking of the coating. 4. Minimize heat input and keep the electrode weaving amplitude small. 5. Maintain preheating and interpass temperature below 150℃.
1. Deposited Metal, % by Mass
Item
C
Cr
Ni
Mo
Mn
Si
P
S
Cu
Standard
≤0.15
22.0-25.0
12.0-14.0
≤0.75
0.5-2.5
≤1
≤0.04
≤0.03
≤0.75
Typical
0.06
24.00
12.40
0.10
1.08
0.69
0.025
0.010
0.08
2. Deposited Metal Mechanical Properties
Item
Tensile Strength (Rm/MPa)
Elongation (A/%)
Standard
550
≥25
Typical
580
35
3. Welding Current (Recommended)
Welding Current (Recommended)：(AC、DC⁺)
Electrode Diameter(mm)
2
2.5
3.2
4
5
Electrode Length(mm)
300
300
350
400
400
Current(A)
25-50
50-80
80-110
110-160
160-200
E309L
Application：Suitable for welding identical stainless steel structures, clad steels and dissimilar steel components in the manufacturing of synthetic fiber, petrochemical and other equipment. It is also applicable to the build-up welding of transition layers on the inner wall of nuclear reactor pressure vessels and the welding of internal tower components. Characteristics：This is an ultra-low carbon Cr23Ni13 stainless steel electrode with rutile coating. It is compatible with both AC and DC power sources and suitable for all-position welding. Due to the low carbon content of the deposited metal, it can resist intergranular corrosion caused by carbide precipitation even without stabilizers such as niobium and titanium. Welding Positions：PA, PB, PD, PF Precautions： 1. Bake the electrodes at 320–350℃ for 1 hour before use, and use them immediately after baking. 2. Thoroughly remove rust, oil, moisture and other contaminants from the workpiece before welding. 3. DC power supply is recommended. AC welding results in shallow penetration; do not use excessive current to avoid overheating and cracking of the coating. 4. Minimize heat input and keep the electrode weaving amplitude small. 5. Maintain preheating and interpass temperature below 150℃.
1. Deposited Metal, % by Mass
Item
C
Cr
Ni
Mo
Mn
Si
P
S
Cu
Standard
≤0.04
22.0-25.0
12.0-14.0
≤0.75
0.5-2.5
≤1
≤0.04
≤0.03
≤0.75
Typical
0.03
24.35
12.60
0.18
1.34
0.62
0.025
0.010
0.01
2. Deposited Metal Mechanical Properties
Item
Tensile Strength (Rm/MPa)
Elongation (A/%)
Standard
510
≥25
Typical
580
35
3. Welding Current (Recommended)
Welding Current (Recommended)：(AC、DC⁺)
Electrode Diameter(mm)
2.5
3.2
4
5
Electrode Length(mm)
300
350
400
400
Current(A)
50-70
80-110
130-160
160-200
E316
Application：Suitable for welding 06Cr17Ni12Mo2 stainless steel equipment operating in organic and inorganic acid (non-oxidizing acid) media. It can also be used for welding high-chromium steel or dissimilar steels that cannot undergo heat treatment after welding. Characteristics：A rutile-coated Cr18Ni12Mo2 stainless steel electrode. Compatible with both AC and DC and suitable for all-position welding. It features excellent welding performance. The deposited metal offers good corrosion resistance, heat resistance and crack resistance, especially outstanding resistance to chloride pitting corrosion. Welding Positions：PA, PB, PD, PF Precautions： 1. Bake the electrodes at 320–350℃ for 1 hour before use, and apply them immediately after baking. 2. Thoroughly remove rust, oil, moisture and other contaminants from the workpiece before welding. 3. DC power supply is recommended. AC welding results in shallow penetration; do not use excessive current to avoid coating overheating and cracking. 4. Minimize heat input and keep the electrode weaving amplitude small. 5. Maintain preheating and interpass temperature below 150℃.
1. Deposited Metal, % by Mass
Item
C
Cr
Ni
Mo
Mn
Si
P
S
Cu
Standard
≤0.08
17.0-20.0
11.0-14.0
2.0-3.0
0.5-2.5
≤1
≤0.04
≤0.03
≤0.75
Typical
0.04
19.00
11.65
2.41
0.96
0.68
0.028
0.010
0.08
2. Deposited Metal Mechanical Properties
Item
Tensile Strength (Rm/MPa)
Elongation (A/%)
Standard
520
≥25
Typical
570
35
3. Welding Current (Recommended)
Welding Current (Recommended)：(AC、DC⁺)
Electrode Diameter(mm)
2
2.5
3.2
4
5
Electrode Length(mm)
300
300
350
350
350
Current(A)
25-50
50-80
80-110
110-160
160-200
E316L
Application：Suitable for welding equipment used in urea production, petrochemical industry, synthetic fiber manufacturing and similar stainless steel structures. It is also applicable to chromium stainless steel, clad steel and dissimilar steel that cannot be heat-treated after welding. Characteristics：An ultra-low carbon Cr19Ni13Mo3 stainless steel electrode with rutile coating. Compatible with both AC and DC and suitable for all-position welding. It features excellent welding performance. The deposited metal possesses good heat resistance, corrosion resistance and crack resistance. Welding Positions：PA, PB, PD, PF Precautions： 1. Bake the electrodes at 320–350℃ for 1 hour before use, and apply them immediately after baking. 2. Thoroughly remove rust, oil, moisture and other contaminants from the workpiece before welding. 3. DC power supply is recommended. AC welding results in shallow penetration; do not use excessive current to avoid coating overheating and cracking. 4. Minimize heat input and keep the electrode weaving amplitude small. 5. Maintain preheating and interpass temperature below 150℃.
